Additional information
Customer Part Number
1006-400-0240-ALCXKC
Brand
Rubberworx

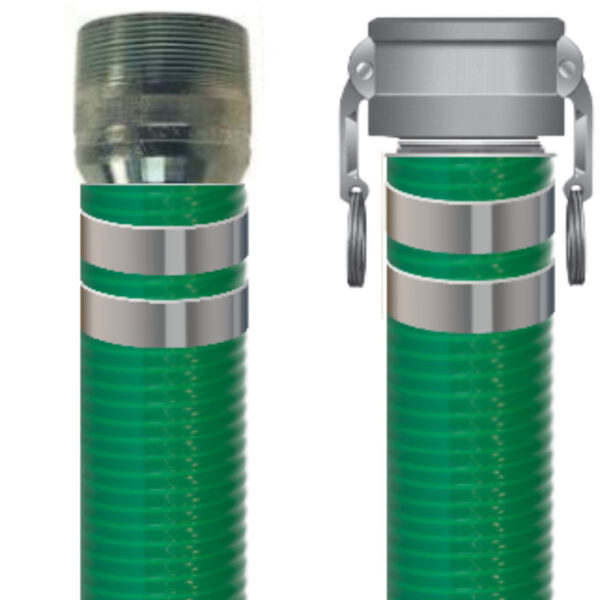

End 1 Fitting
Type C
End 1 Fitting Material
Aluminum
End 1 Fitting part number
RBX-C-AL-400-C
End 2 Fitting
NPT Threaded Nipple
End 2 Fitting Material
Plated Steel
End 2 Fitting part number
KCN400SP
OAL Assembly (ft)
20 ft
Total Assembly Weight (lb)
45
Hose Inside Diameter (Fraction Inch)
4 in
Hose Inside Diameter (Decimal Inch)
4.00 in
Hose Inside Diameter (Metric mm)
102 mm
Hose Nominal Outside Diameter (Fraction Inch)
4 5/9 in
Hose Nominal Outside Diameter (Decimal Inch)
4.56 in
Hose Nominal Outside Diameter (Metric mm)
116 mm
Working Pressure (psi)
50 psi
Safety Factor
3:1
Burst Pressure (psi)
150 psi
Bend Radius (Decimal Inch)
12 in
Bend Radius (Metric mm)
305 mm
Vacuum Pressure (inHg)
28 inHg
Hose Weight (lb/ft)
2.05 lb/ft
Hose Weight (kg/m)
3.05 kg/m
Tube Material
PVC
Tube Color
Green
Suction / Discharge
Suction
Reinforcement Helix (Yes/No)
Yes
Reinforcement Helix Material/Type
PVC
Cover Material
PVC
Cover Color
Green
Cover Finish 1 (Smooth, Corrugated)
Smooth
Cover Finish 2 (Smooth, Wrapped, Woven, Braided)
Smooth
